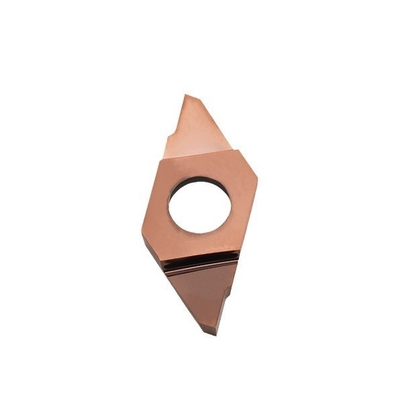

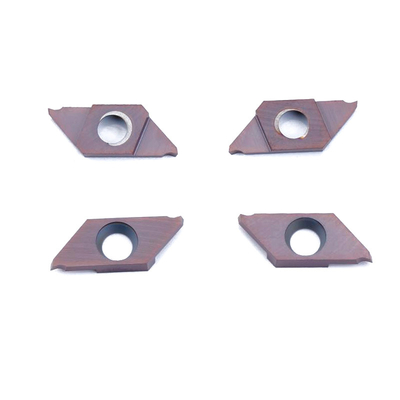

The TKF16 is a widely recognized type of CNC carbide insert designed for parting-off and external grooving, particularly suited for small diameter steel components. This insert is primarily utilized in grooving and cutting-off operations on lathes and CNC machines, available in various shapes and cutting angles.
Carbide inserts are replaceable and typically indexable tools made from cemented carbide, ideal for machining steels, cast iron, high-temperature alloys, and nonferrous materials. These inserts facilitate faster machining processes while achieving superior finishes on metal parts.
This series of inserts primarily adheres to the standards set by Kyocera’s TKF16 series. Size details can be customized according to specific customer requirements.
The TKF16 series is a renowned line of carbide grooving inserts by Kyocera. Our Drow standard production sizes and stock specifications are aligned with this established Kyocera series.
For detailed specifications, please refer to the section below.
Material Quality: Crafted from 100% original carbide powder, providing exceptional wear resistance and durability.
Dimensions:
Coating Technology: Advanced coatings are specified based on your application, enhancing both corrosion and wear resistance.
Fine Grinding Process: The insert surface features high smoothness and superior cutting edge quality, effectively reducing cutting resistance and friction.
Perfect Fit: Precision-engineered edge strips minimize micro-vibration during processing.
Applicable Materials:
Customization: If our standard stock does not meet your specific needs, please provide CAD or 3D drawings for inquiries.
Production Quality: All inserts are manufactured using high-end EU processing equipment. For further details, please refer to the “Entire Production Quick View” section.
Product Features:
1.Chamfering and tip-arc processing of the insert cutting edge, which can well protect the insert edge from fracture and lead to smooth workpiece surface.
2.Switzerland 5 axis machine processing R Angle, and passivation treatment, high precision without burr.
3. High performance composite coating support which can offer you super hard and smooth surface.
4. Professional and efficiency chip-breaker design, provides perfect cutting performance.
5. Precise dimension, high accuracy. Perfectly fit to tool holders so that not easy to produce micro-vibration during processing.
6.The base material imported from Europe has better oxidation resistance and wear resistance.
7. Customized insert design.Different dimensions,coating, chip-breaker, and material grade are available.
Carbide inserts produced by We Drow realize efficiency machining and long tool life, which are popular and well-feedback all over the world.
Product Specification:
| Part Number | W1 | S | D1 |
| TKF16_ | 4 | 9.5 | 5 |
| Part Number | Dimensions(mm) | ||||
| CW | CUTDIA | RE | PSIRR | ||
| TKF16 R/L_ | 150-S-16DR | 1.5 | 16 | 0.05 | 16° |
| 200-S-16DR | 2.0 | ||||
| 150-T-16DR | 1.5 | 16 | 0.08 | 16° | |
| 200-T-16DR | 2.0 | ||||
| 150-NB-20DR | 1.5 | 16 | 0 | 20° | |
| 200-NB-20DR | 2.0 | ||||
| TKF16 R/L Plain End | 150-S | 1.5 | 16 | 0.05 | 0° |
| 200-S | 2.0 | ||||
| 150-T | 1.5 | 16 | 0.08 | 0° | |
| 200-T | 2.0 | ||||
| 150-NB | 1.5 | 16 | 0 | 0° | |
| 200-NB | 2.0 | ||||
| Attention:The above are our standard production size and standard stock specifications, the size details can be processed separately according to customer requirements, and refer to the standard: Kyocera's TKF16 series, etc. | |||||
Entire Production Quick View:
1.Use 100% original carbide powder to sinter to get the integral insert blank.
2.Flat grinding machining.
3.Surrounding grinding machining.
4.Create insert cutting edge.
5.Chamfering and tip-arc processing of the insert cutting edge.
6.Composite Coating.
Quality Inspection:
1.Checked carefully by experienced staff.
2.Microscope check.
3.Swis edging
4.German forging difference process detection
5.Edge passivation detection
6.Coreless grinding
Why choose us:
1.Technical innovation: Complex surfaces and functional structures can be quickly formed and kept accurate.
2.Processing speed: Short production cycle, fast delivery time, to ensure delivery on time according to the delivery date.
3.Product quality: High quality guaranteed.High precision, up to 0.005-0.001mm.
4.Confidentiality system: Triple confidentiality measures to protect, proofing more assured.
5.Fully equipped: Excellent processing capacity, multiple production lines, advanced equipment, professional supporting facilities.
6.Cost-effective: Reasonable design and material selection lead us to a competitive price, so that could help provide you more favorable price of the same level products .
FAQ
Q1:Are you a factory or trading company?
A1: We are a professional manufacturer of precision hardware tools industry for tens of years. Welcome to visit our company.We guarantee our products are factory price, very cheap and competitive.
Q2: Who are we?
A:We are based in Guangdong Province, China, start from 2010,sell to Western Europe(10.00%),North America(20.00%),Eastern Europe(20.00%),Southeast Asia(40.00%),Africa(10.00%). There are total about 51-100 people in our factory.
Q3. Can you send products to our Forwarder in China?
A: Yes,if you have Forwarder in China,we will glad to send products to him/her.
Q4: What about the package?
A: We use plastic boxes to pack our products, and filled plastic is shockproof and transported in cartons. also It can make as you need and depend on the shapes of the product.
Q5:Is your company accept customization?
A: OEM and ODM are available. And we have our own professional R&D team servicing for you.
Q6: What's your delivery way?
A: According to the requirements of customers,we will provide the best transportation service
