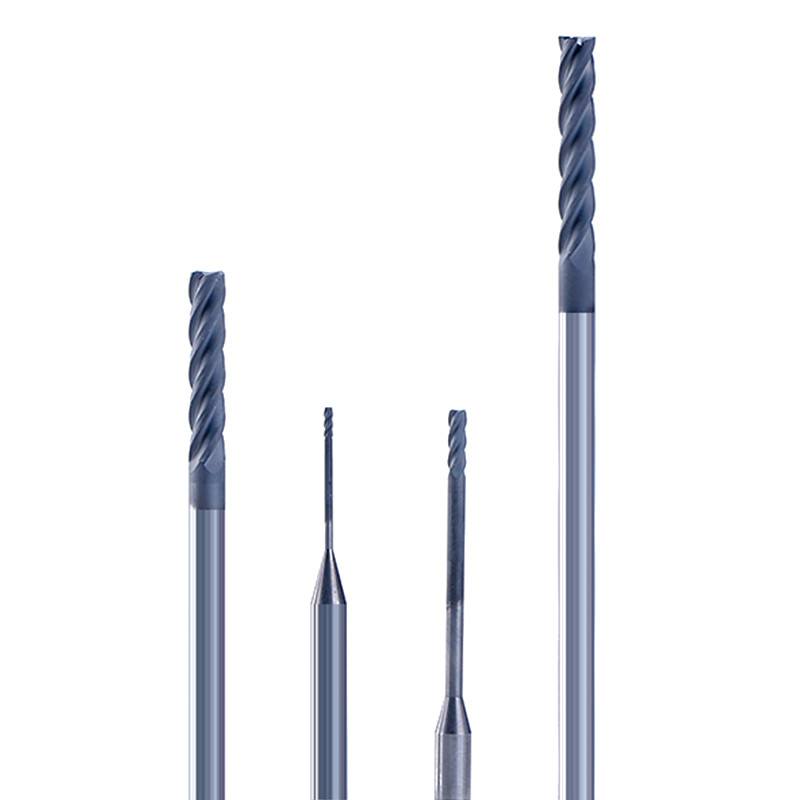

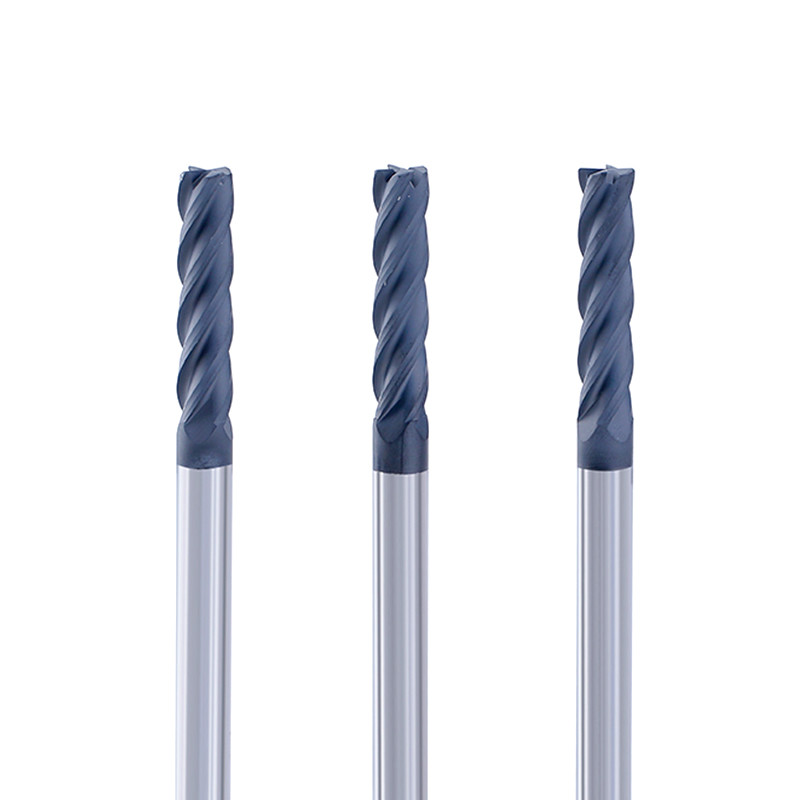

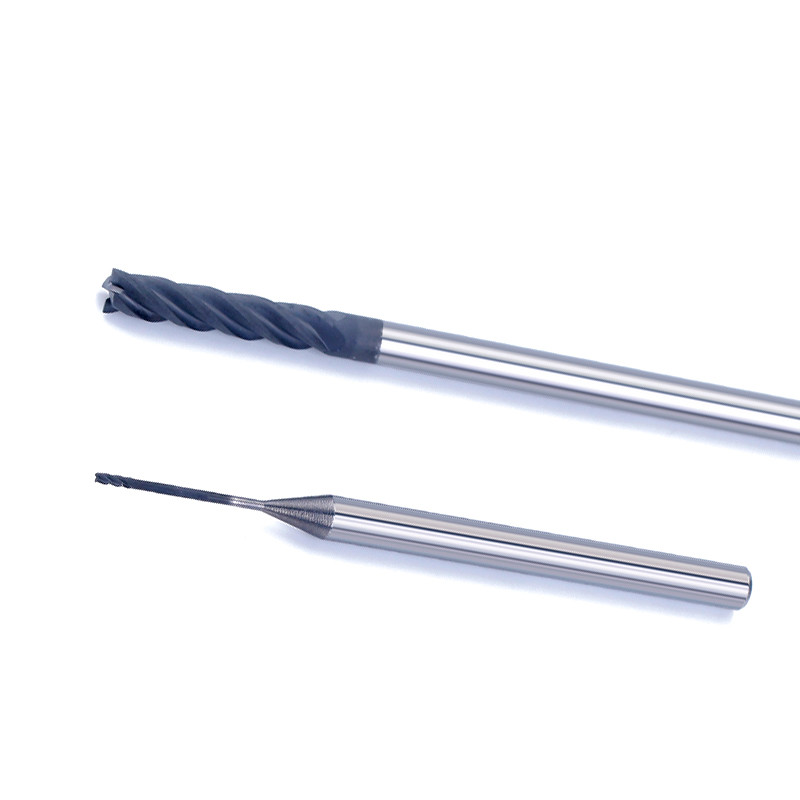

The flat end milling cutter with diamond coating is primarily used in modern industry for processing graphite and alloy non-ferrous materials. With its plain end face design, it is suitable for side machining, surface machining, straight flute machining, and deep groove processing.
We are committed to meeting your specific demands through our outstanding R&D team and standardized factory production. We welcome you to contact us!
| Brand Name | Drow |
|---|---|
| Model Number | Diamond Coating Flat End Mill Cutter |
| Customized Support | OEM, ODM, OBM |
| Standard | ISO |
| Product Type | End Milling Cutter |
| Material | Tungsten Carbide, 100% New Material |
| Coating | Diamond coating |
| Hardness | HRA 91 ~ 93.5 |
| Cutting Diameter | 0.5 ~ 10 mm |
| Shank Diameter | 4 ~ 10 mm |
| Sample Order | Acceptable |
| Usage | For side machining, surface machining, straight flute machining, deep groove processing. |
| Applicable Materials | Suitable for processing graphite, alloy, and non-ferrous materials. |
| Compatible Machines | CNC machining centers, engraving machines, and other high-speed machines. |
| Machining Type | Rough / Semi-Finishing |
Material Selection: Made from tungsten carbide, 100% new material with high wear resistance and hardness.
Application Field: Ideal for side machining, surface machining, straight flute machining, and deep groove processing.
Applicable Materials: Suitable for processing graphite, alloy, and non-ferrous materials.
Burr-Free Cutting: The sharp, wear-resistant cutting edge ensures effective chip removal, high processing efficiency, precise results, and durability.
Sharp and Precise: Utilizes mirror grinding technology combined with large-capacity chip flutes for enhanced sharpness and precision.
Diamond Coating: The remarkable heat insulation performance of diamond coating, coupled with its superior wear resistance, results in a performance increase of 10-15 times compared to ordinary tungsten steel milling cutters. This reduces tool change time and minimizes issues associated with tool marks from multiple tool changes, significantly lowering your production costs.
Product Specification:
| Specifications | Shank Diameter | Cutting Diameter | Cutting Length | Effective Length | Total Length | Flutes |
| d mm | D mm | L1 mm | L2 mm | L mm | ||
| D0.5*1.5*6*D4*50L*2F | 4 | 0.5 | 1.5 | 6 | 50 | 2 |
| D0.5*1.5*4*D4*60L*2F | 4 | 0.5 | 1.5 | 4 | 60 | 2 |
| D0.6*1.5*6*D4*50L*2F | 4 | 0.6 | 1.5 | 6 | 50 | 2 |
| D0.6*1.8*6*D4*60L*2F | 4 | 0.6 | 1.8 | 6 | 60 | 2 |
| D0.8*2.4*6*D4*60L*2F | 4 | 0.8 | 2.4 | 6 | 60 | 2 |
| D1*3*10*D4*60L*4F | 4 | 1 | 3 | 10 | 60 | 4 |
| D1*3*15*D4*75L*4F | 4 | 1 | 3 | 15 | 75 | 4 |
| D1.5*5*10*D4*60L*4F | 4 | 1.5 | 5 | 10 | 60 | 4 |
| D1.5*5*10*D4*75L*4F | 4 | 1.5 | 5 | 10 | 75 | 4 |
| D2*6*10*D4*60L*4F | 4 | 2 | 6 | 10 | 60 | 4 |
| D2*6*15*D4*75L*4F | 4 | 2 | 6 | 15 | 75 | 4 |
| D2.5*8*10*D4*60L*4F | 4 | 2.5 | 8 | 10 | 60 | 4 |
| D3*9*D3*60L*4F | 3 | 3 | 9 | 9 | 60 | 4 |
| D3*9*D4*60L*4F | 4 | 3 | 9 | 9 | 60 | 4 |
| D3*15*D3*75L*4F | 3 | 3 | 15 | 15 | 75 | 4 |
| D3*15*D4*75L*4F | 4 | 3 | 15 | 15 | 75 | 4 |
| D3*9*30*D3*100L*4F | 3 | 3 | 9 | 30 | 100 | 4 |
| D4*10*D4*50L*4F | 4 | 4 | 10 | 10 | 50 | 4 |
| D4*12*D4*60L*4F | 4 | 4 | 12 | 12 | 60 | 4 |
| D4*20*D4*75L*4F | 4 | 4 | 20 | 20 | 75 | 4 |
| D4*20*D4*100L*4F | 4 | 4 | 20 | 20 | 100 | 4 |
| D6*18*D6*60L*4F | 6 | 6 | 18 | 18 | 60 | 4 |
| D6*18*D6*75L*4F | 6 | 6 | 18 | 18 | 75 | 4 |
| D6*30*D6*100L*4F | 6 | 6 | 30 | 30 | 100 | 4 |
| D8*24*D8*75L*4F | 8 | 8 | 24 | 24 | 75 | 4 |
| D8*30*D8*100L*4F | 8 | 8 | 30 | 30 | 100 | 4 |
| D10*30*D10*75L*4F | 10 | 10 | 30 | 30 | 75 | 4 |
| D10*35*D10*100L*4F | 10 | 10 | 35 | 35 | 100 | 4 |
| D10*50*D10*150L*4F | 10 | 10 | 50 | 50 | 150 | 4 |
Q1: Do you produce special cutting tools?
A: Yes, we specialize in customized cutter fabrication and can translate complex cutting ideas into reality. Our tools are designed and customized for various demanding applications and materials.
Q2: Do you accept low volumes for sample orders? What’s your MOQ for special tools?
A: Yes, we do. For sample orders, we accept a minimum order quantity (MOQ) of one piece, with a sample lead time of 2–3 days. This can be negotiated for special requirements.
Q3: If we want to cooperate with you, is confidentiality guaranteed?
A: Absolutely. All your information, including company details, drawings, and purchase order specifics, will be kept confidential. We can sign an NDA (Non-Disclosure Agreement) if you wish.
Q4: What are your payment terms?
A: We require a T/T payment structure of 30% as a deposit and 70% balance before delivery. We will provide photos of the products and packaging before you pay the balance.
Q5: What can you buy from us?
A: We offer carbide inserts, carbide end mills, carbide drills, carbide boring tools, cutting tools, and customized carbide precision molds.
