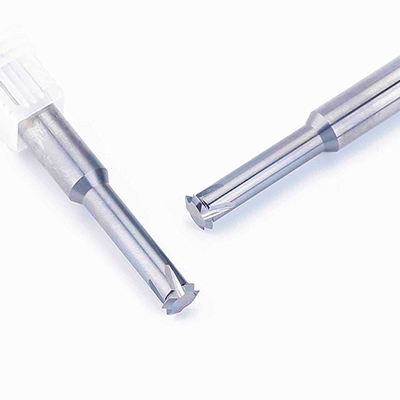

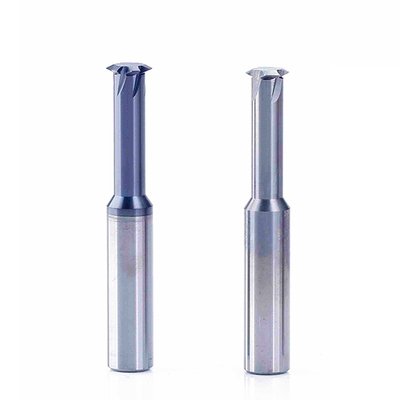

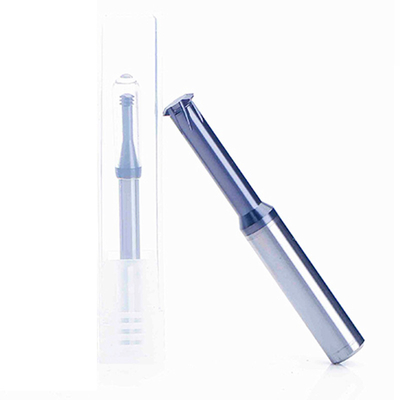

The single-tooth internal thread milling cutter with composite coating is ideal for processing proofing parts. This versatile cutter is particularly useful when dealing with a wide range of thread specifications and a limited number of thread holes.
We are committed to meeting your specific demands through our outstanding R&D team and standardized factory production. We welcome you to contact us!
| Brand Name | Drow |
|---|---|
| Model Number | Single-Tooth Internal Thread Milling Cutter |
| Customized Support | OEM, ODM, OBM |
| Standard | ISO |
| Product Type | Milling Thread Cutter |
| Material | Tungsten Carbide, 100% New Material |
| Coating | Composite coating |
| Hardness | HRC 45/55/60/65 degrees |
| Specification | 1T, M1.0 ~ M16 |
| Shank Diameter | 4 ~ 12 mm |
| Sample Order | Accepted |
| Usage | Internal thread milling for a wide range of products with flexible use. |
| Applicable Materials | Suitable for processing stainless steel, cast iron, carbon steel, quenched steel, and other hard materials. |
| Compatible Machines | CNC machining centers, engraving machines, and other high-speed machines. |
| Machining Type | Semi-Finishing / Finishing |
| Customization | Professional and available. |
Material Selection: Made from tungsten steel round rods imported from Japan and Germany, ensuring stable quality and extended tool life.
Application Field: This single-tooth thread milling cutter is suitable for processing proofing parts. It is particularly effective when there are many thread specifications to process but only a few thread holes.
Applicable Materials: Ideal for processing stainless steel, cast iron, carbon steel, quenched steel, and other hard materials.
High-Density Coating Process: Provides excellent wear resistance and effective heat insulation, ensuring a long service life for the tool.
Burr-Free Cutting: The sharp and wear-resistant cutting edge ensures effective chip removal, high processing efficiency, precise threading, and exceptional durability.
Sharp and Precise: Utilizes mirror grinding technology combined with large-capacity chip flutes for enhanced sharpness and precision.
Product Specification:
| Specifications | Size(mm) | |||
| D | d | L. | Le | |
| 1T/C-M1.0*0.25-D4 | 4 | 0.65 | 50 | 3 |
| 1T/C-M1.2*0.25-D4 | 4 | 0.85 | 50 | 3.6 |
| 1T/C-M1.4*0.3-D4 | 4 | 1 | 50 | 4.2 |
| 1T/C-M1.6*0.35-D4 | 4 | 1.15 | 50 | 4.8 |
| 1T/C-M2.0*0.4-D4 | 4 | 1.45 | 50 | 6 |
| 1T/C-M2.5*0.45-D4 | 4 | 1.9 | 50 | 7.5 |
| 1T/C-M3.0*0.5-D4 | 4 | 2.35 | 50 | 9 |
| 1T/C-M4.0*0.7-D4 | 4 | 3.15 | 50 | 12 |
| 1T/C-M5.0* 0.8-D6 | 6 | 4 | 50 | 15 |
| 1T/C-M5.0* 0.8-D4 | 4 | 4 | 50 | 15 |
| 1T/C-M6.0*1.0-D6 | 6 | 4.8 | 50 | 18 |
| 1T/C-M8.0*1.25-D6 | 6 | 6.5 | 50 | 24 |
| 1T/C-M10*1.0-D8 | 8 | 8.2 | 60 | 30 |
| 1T/C-M10*1.25-D8 | 8 | 8.2 | 60 | 30 |
| 1T/C-M10*1.5-D8 | 8 | 8.2 | 60 | 30 |
| 1T/C-M12*1.0-D10 | 10 | 9.9 | 75 | 36 |
| 1T/C-M12*1.25-D10 | 10 | 9.9 | 75 | 36 |
| 1T/C-M12*1.5-D10 | 10 | 9.9 | 75 | 36 |
| 1T/C-M12*1.75-D10 | 10 | 9.9 | 75 | 36 |
| 1T/C-M14*1.5-D10 | 10 | 11.6 | 75 | 36 |
| 1T/C-M14*2.0-D10 | 10 | 11.6 | 75 | 36 |
| 1T/C-M16*1.5-D12 | 12 | 13.6 | 75 | 40 |
| 1T/C-M16*2.0-D12 | 12 | 13.6 | 75 | 40 |
Q1: Do you produce special cutting tools?
A: Yes, we specialize in customized cutter fabrication and can translate complex cutting ideas into reality. Our tools are designed and customized for various demanding applications and materials.
Q2: Do you accept low volumes for sample orders? What’s your MOQ for special tools?
A: Yes, we do. For sample orders, we accept a minimum order quantity (MOQ) of one piece, with a sample lead time of 2–3 days. This can be negotiated for special requirements.
Q3: If we want to cooperate with you, is confidentiality guaranteed?
A: Absolutely. All your information, including company details, drawings, and purchase order specifics, will be kept confidential. We can sign an NDA (Non-Disclosure Agreement) if you wish.
Q4: What are your payment terms?
A: We require a T/T payment structure of 30% as a deposit and 70% balance before delivery. We will provide photos of the products and packaging before you pay the balance.
Q5: What can you buy from us?
A: We offer carbide inserts, carbide end mills, carbide drills, carbide boring tools, cutting tools, and customized carbide precision molds.
